As we all know, LCD splicing screens are widely used nowadays and are one of the most popular terminal display devices; due to its unique high-definition display advantages indoors, it supports 24*7 hours of long-term damage-free operation, long life, etc., and is well received by users Favor, today the LCD splicing screen manufacturer Winbond will briefly introduce the common commands and image adjustment operations of its control software.

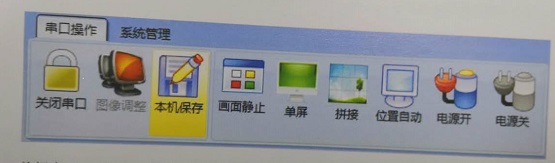

On the operation page of the multi screen splicing system, we often see the following figure:

This is the common command area of the splicing system, which is equivalent to a small menu bar. We can adjust to the desired effect through the above functions.

Close serial port: click this icon to close the serial port. At the same time, all communication related functions are invalid.

Picture stillness: let the moving and playing picture present static state.

Single screen: Let the selected splicing unit (selected in the operation area, the operation area is below), single screen display.

Splicing: splice the selected splicing unit into a large screen display.

Automatic position: position is automatically adjusted to full screen display (but only VGA, DVI, HDMI channels are valid, other channels are invalid)

Power switch: Turn on or off the power of the display unit in the selected area.

This is the general content of the commonly used command area, but everyone must be very curious, why the image adjustment is dark, can not be clicked, LCD splicing screen manufacturer Winbond will answer your questions, then due to the authority of the image adjustment function It needs to be enabled in the administrator mode. The so-called administrator has all the permissions to modify the system. The manufacturer of these splicing screens will tell you, don't worry.

After opening the administrator authority operation, we can see the image adjustment display page as follows:

This is an internal parameter of the VIDEO signal. We can adjust these parameters to achieve the image effect we want (Note: The adjustment range here is the coordinate unit area selected in the current operating area.)

Brightness: adjust the brightness of the screen image

Contrast: adjust the contrast of the screen image

Saturation: adjust the color depth of the image

Sharpness: adjust the sharpness of the screen image

3D noise reduction: adjust the noise of the video

Horizontal position: adjust the horizontal position of the screen image display

Vertical position: adjust the vertical position of the screen image display

The above adjustments can be adjusted to the effect you want by clicking the left and right buttons with the mouse. The other two VGA/DVI/HDMI and color adjustments are also similar in operation, mainly for color temperature dark balance and light balance, here , I will not introduce them one by one.

Finally, it should be noted that these operating specifications are only for the operating system and control management software provided by Winbond. If you have any questions, please consult Winbond, the LCD splicing screen manufacturer, and we will try our best to answer your questions and provide you with high-quality terminal display solutions and products, coordinated development, and mutually beneficial coexistence.
